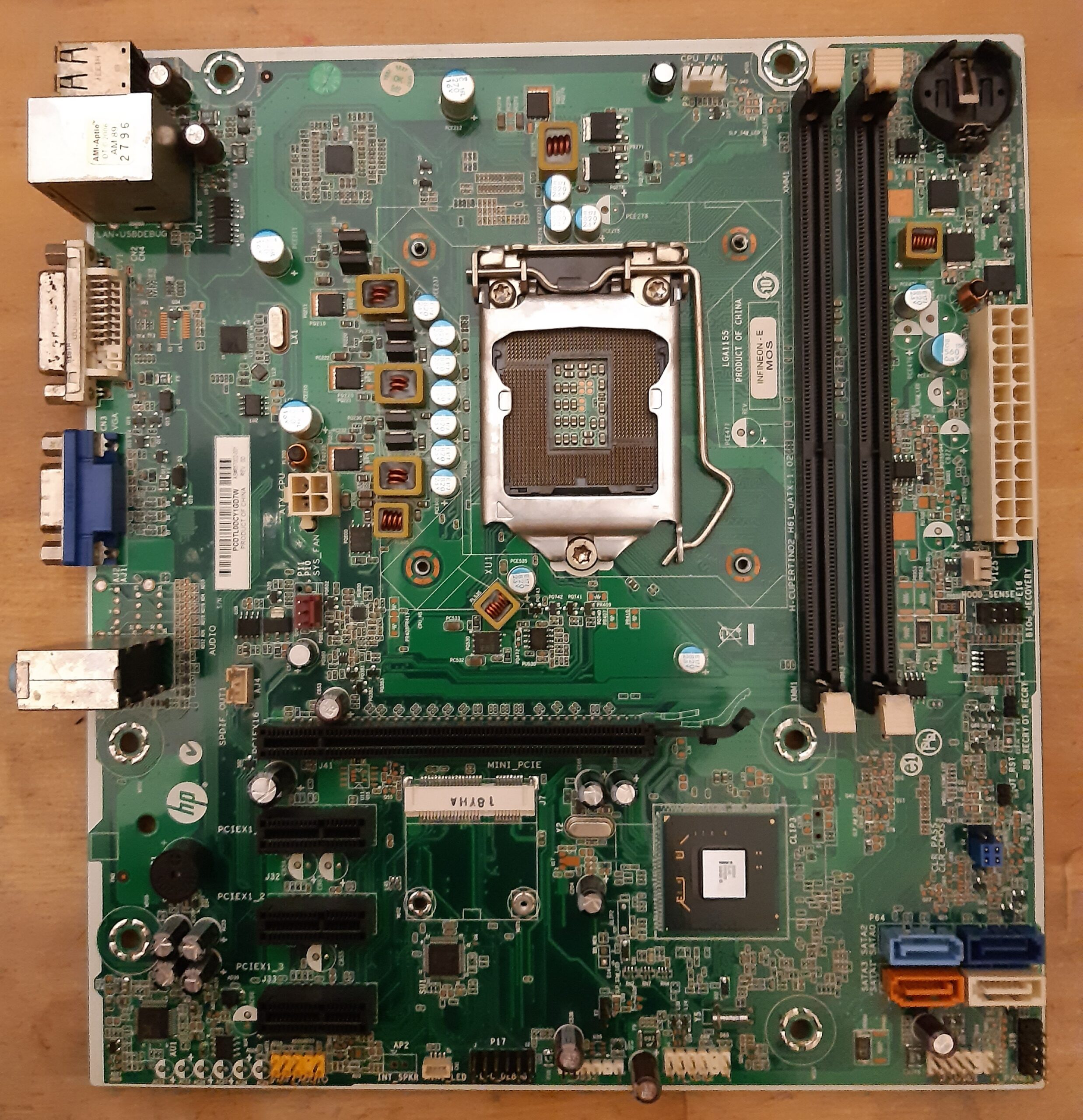

HP / Foxconn 2ABF (Cupertino2) v.3.10 Placa Base

Supported sockets:

• LGA1155

Supported architectures:

• Intel Celeron Sandy Bridge
• Intel Core i3 Sandy Bridge
• Intel Core i5 Sandy Bridge
• Intel Core i7 Sandy Bridge
• Intel Pentium Sandy Bridge
• Intel Xeon E3 Sandy Bridge

Note! Some steppings might require updated BIOS/microcode to work properly.

• Type: DDR3 1066/1333 MHz
  2 memory channels on 2x 240-pin DIMM

Max supported: 16.00 GB

Southbridge/ICH/PCH/MCP: Intel H61
SuperIO: ITE IT8772
CPU dependant integrated graphics, with max 1024 MB of System VRAM
Realtek ALC656 audio IC over HD Audio bus
Realtek RTL8171E for 1G operation

Main board power: 24-pin ATX
CPU power: 4-pin P4
1 3-pin DC fan header
1 4-pin PWM fan header

1 PCIe x16 slot
3 PCIe x1 slots
1 mPCIe slot

4x USB 2.0 (480 Mb/s)
1x RJ-45
VGA output
DVI output
Audio connectors: Line out, Line in, Microphone in

5x USB 2.0 (480 Mb/s)
Audio headers: S/PDIF
Header for front HD Audio

4 SATA-II (3 Gb/s) ports

Micro ATX form factor
PCB manufactured in the year 2011

Board name H-CUPERTINO2_H61_uATX. HP part number 657002-001.
